Widetrack axle widening kit
Configure
- 01Vehicle
- 02Caster correction
- 03Rear axle
- 04Accessories
- 05Your setup
Which vehicle do you drive?
On the Defender the kit fits the 90, 110 and 130.
Fits the Discovery Series I (1989–1998) only. For the Discovery we put the kit together on request: at the end you send us your configuration instead of adding it to the cart.

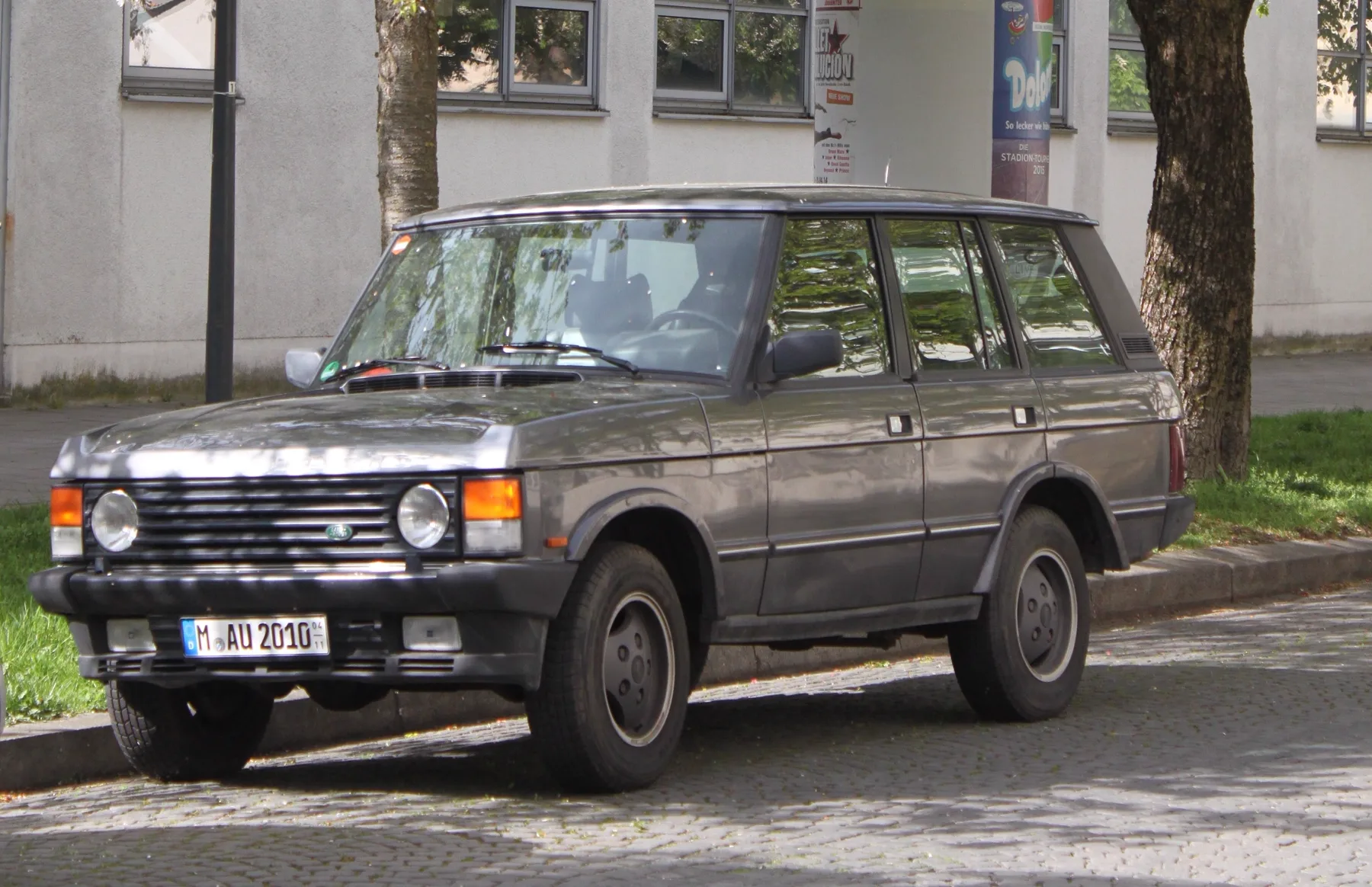

Fits the Range Rover Classic (1986–1994). Here too we put the kit together on request: at the end you send us your configuration by e-mail.
Engine
Why do we ask about the engine?

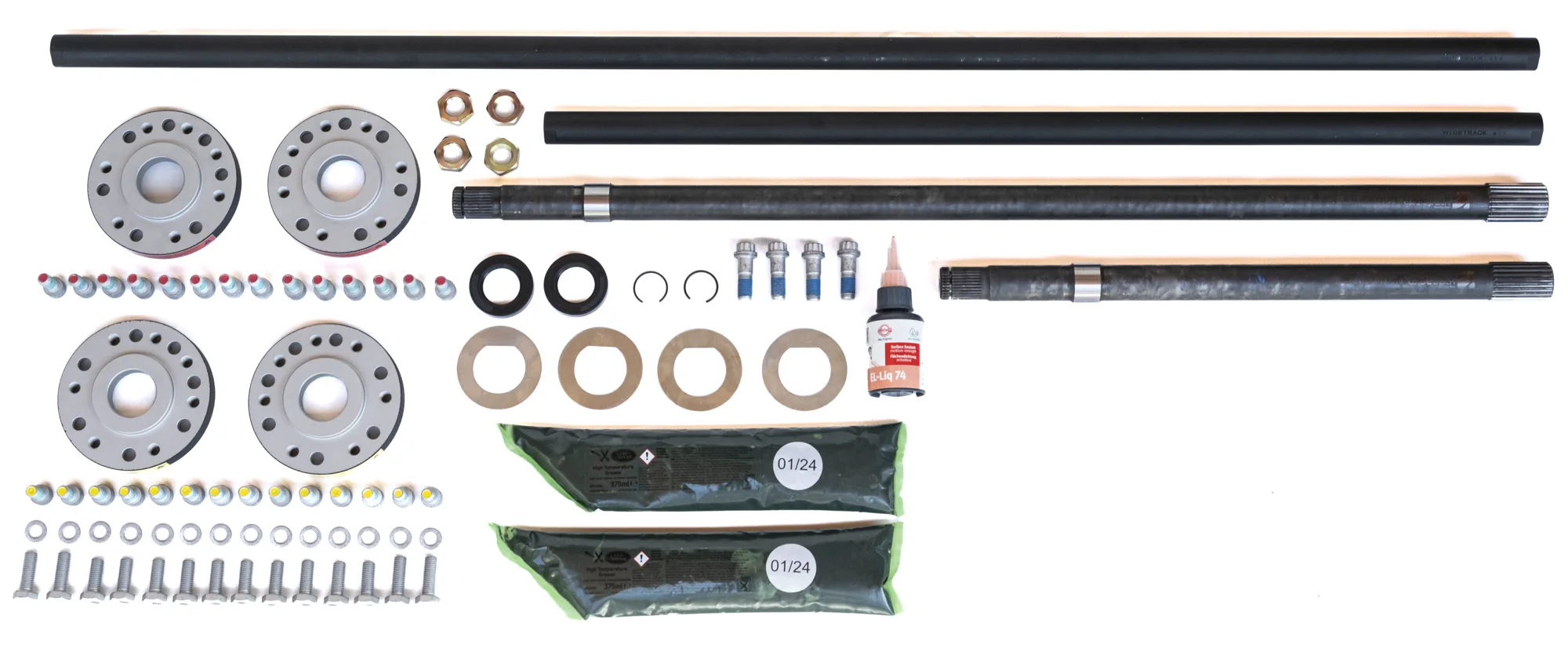

The wheel bearing system differs between the engine variants. On the older system the wheel bearing nuts can be reused, but a new lock washer is needed. On the newer system (from the TD5 onwards) a new nut is required instead. We automatically put together the right set for you.

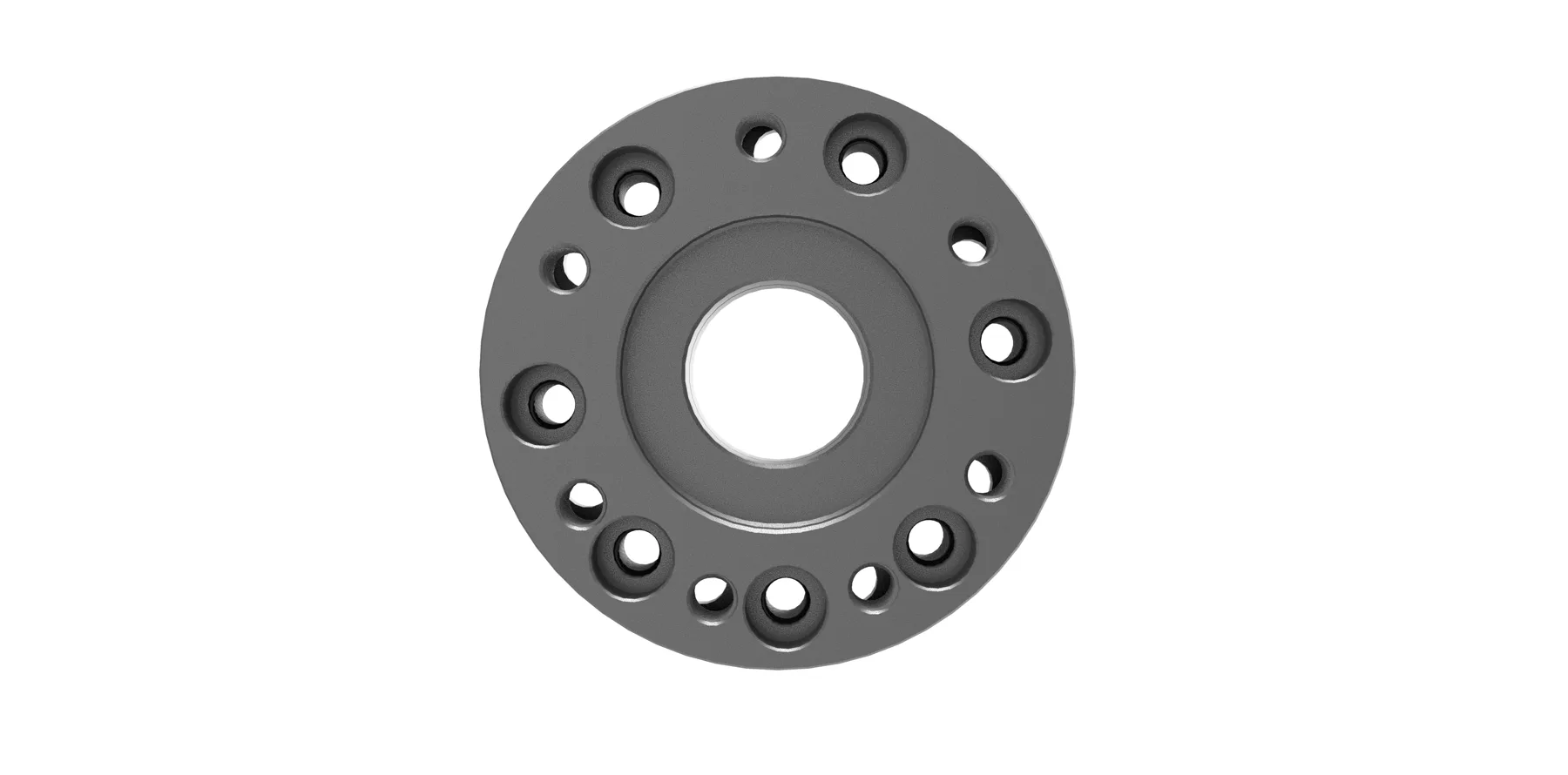

Which angle suits you?
How high does your Defender sit? That determines the right caster correction, and we select it automatically.
Why does it matter?

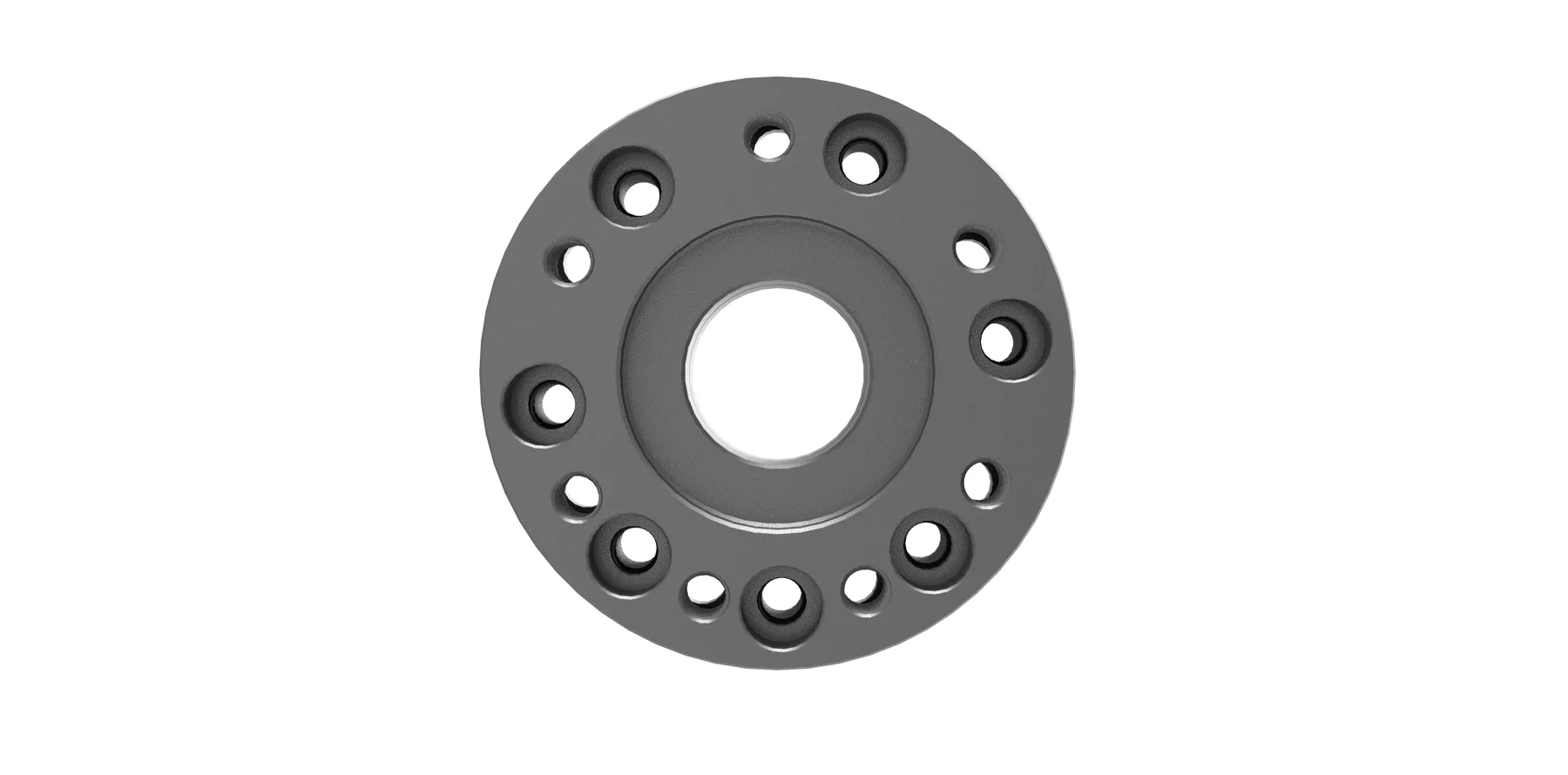

When you lift the suspension, the axle tilts forward and the caster decreases: the steering becomes nervous and holds a straight line less well. Our widening rings correct the caster at the same time: 2 ° at standard ride height, 4 ° from a 40 mm lift upwards.
Does the steering effort increase with a larger caster angle?
Over-correcting the caster angle increases the self-centering force of the tyres, which gives safer straight-line stability. As a result the steering effort can increase slightly. In our opinion that is not a drawback, quite the opposite: the handling feels safer and more modern.
Which axles do we widen?

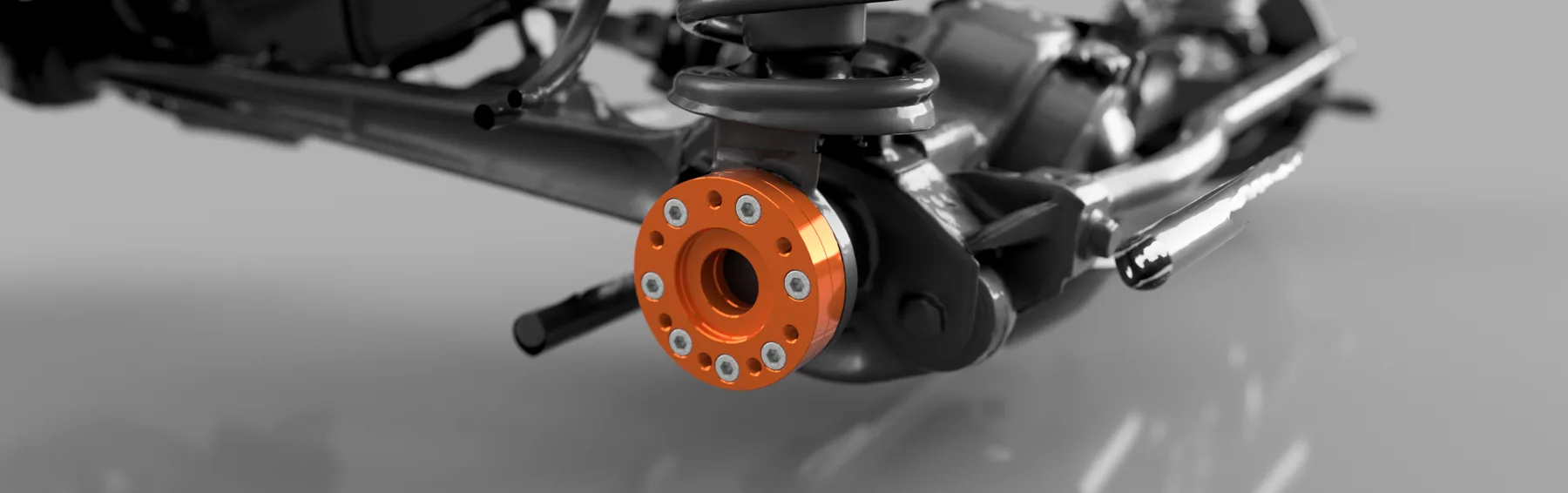

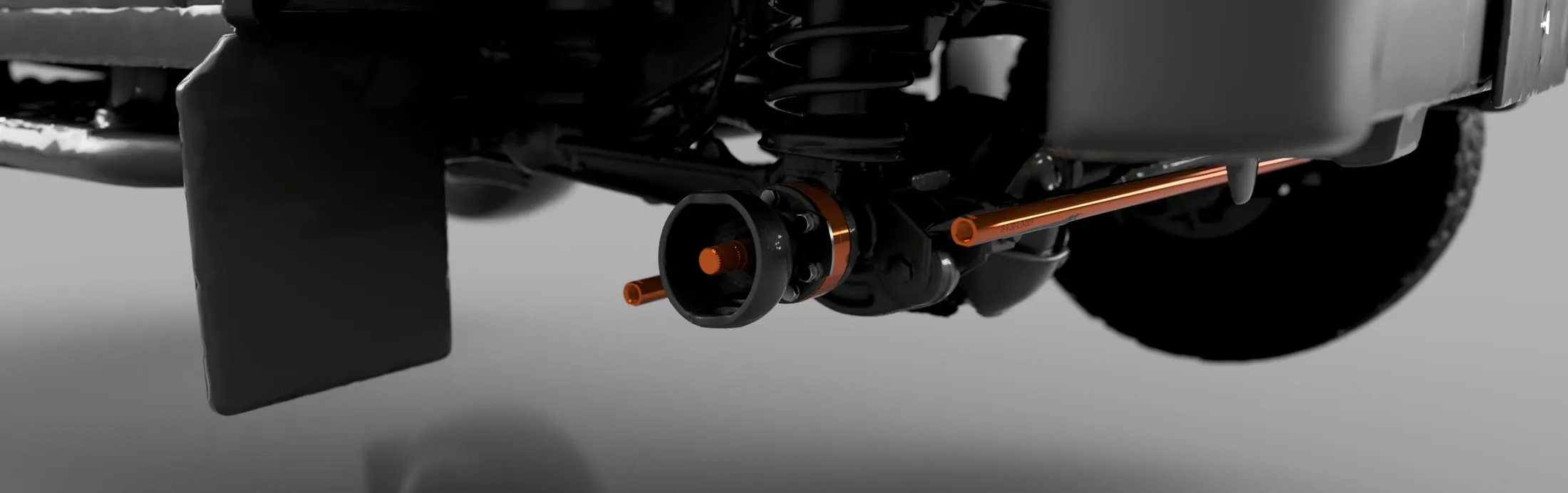

The front axle is the heart of the system; the rear axle follows with wheel spacers.
Does the rear axle need track widening too?
Yes. For the front and rear axle to run in the same track, the rear axle needs to be widened as well. Either you already have 30 mm wheel spacers on the rear axle, or you can order them right here together with the kit.
Why “only” wheel spacers at the rear?
The rear beam axle has no steering geometry, so track, camber and caster do not change there. Conventional wheel spacers are therefore the technically clean and most economical solution.

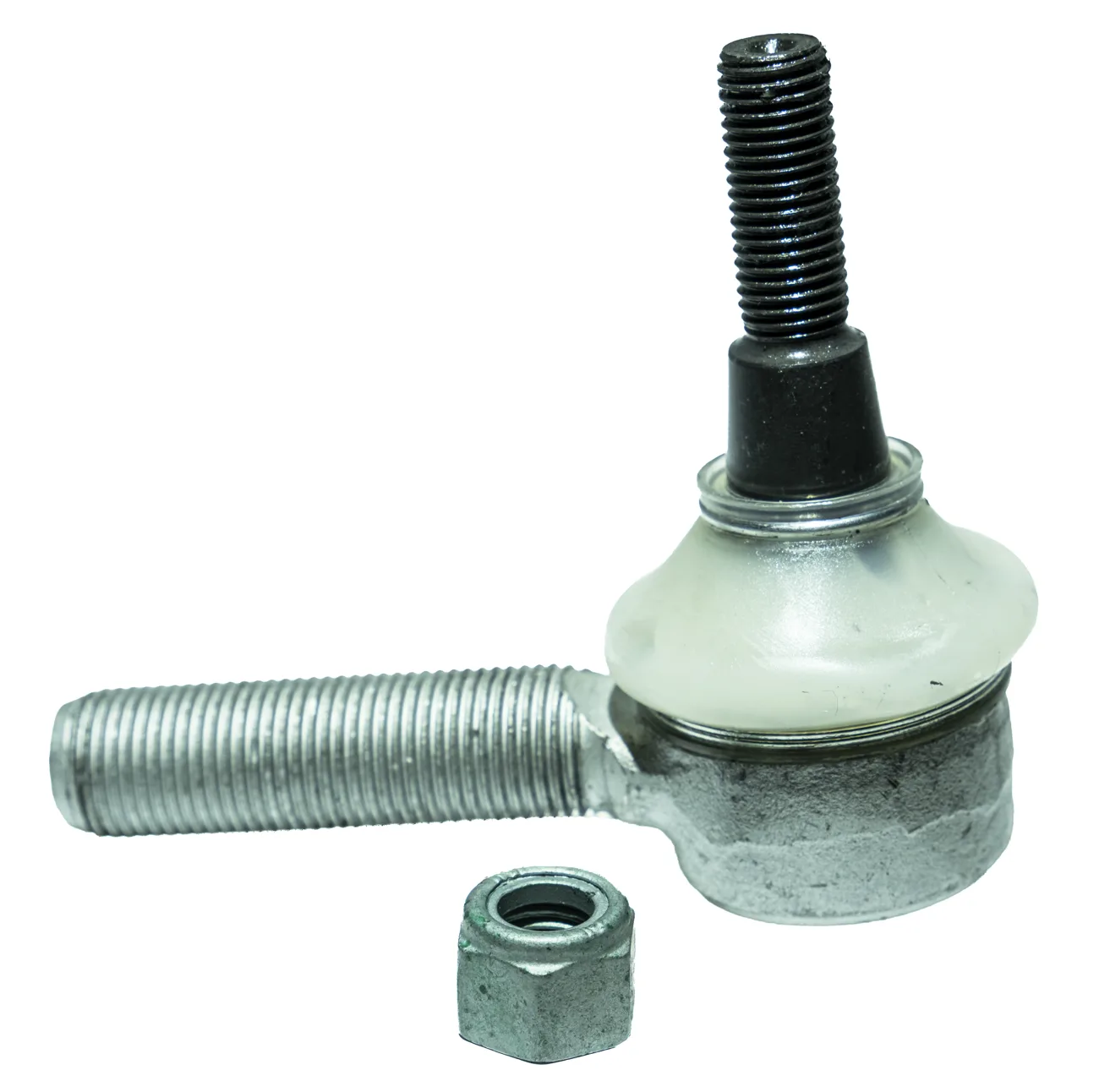

Do you need new track rod ends?
The drag link and track rod are part of the kit; you can add the rod ends.
The lock nuts for fastening the track rod ends to our drag link and track rod are always included.
Without a VIN we cannot issue the expert report — it is documented in the report for individual vehicle approval (§ 19 (2) in conjunction with § 21 StVZO).
Your Widetrack setup
Defender · TD5/TD4
incl. VAT · free shipping (EU) · in stock, dispatched within 1 working week
incl. VAT · free shipping (EU) €1,950
Your vehicle is not listed, or you have further questions? Go to the contact page
Shop
Your cart.

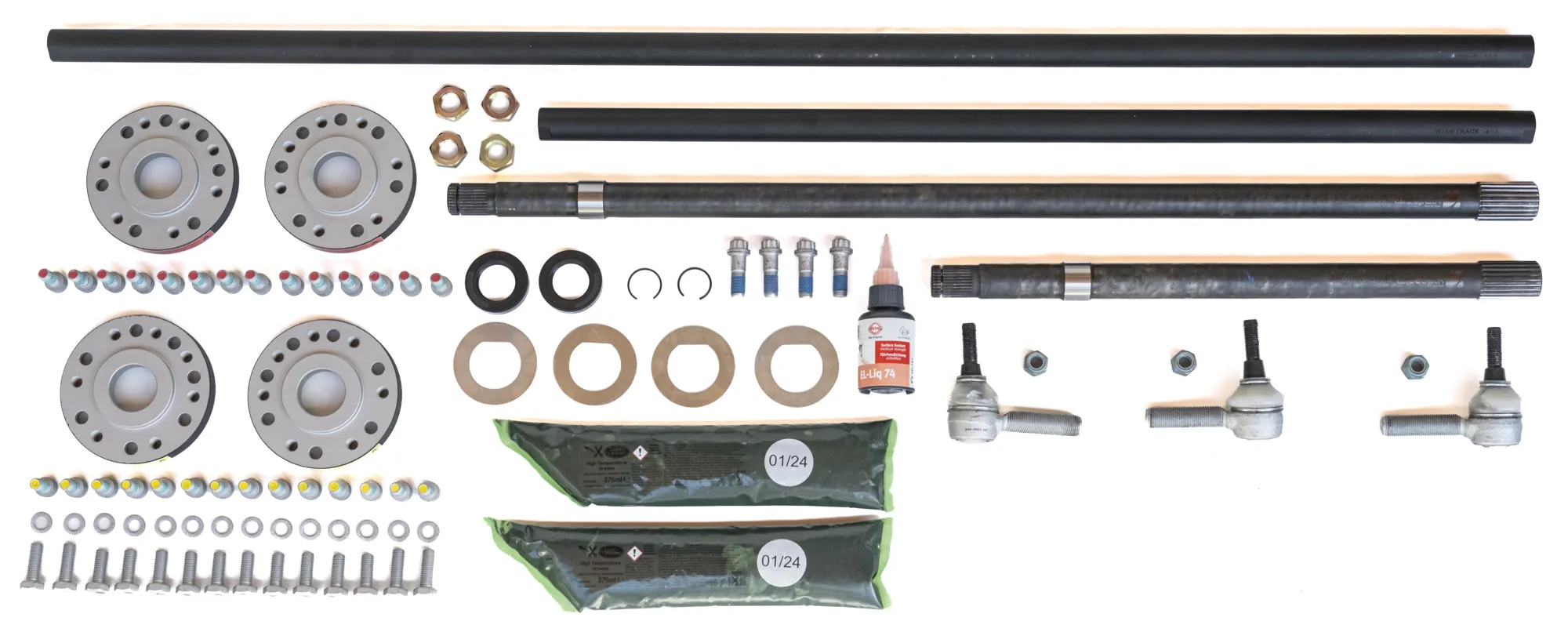

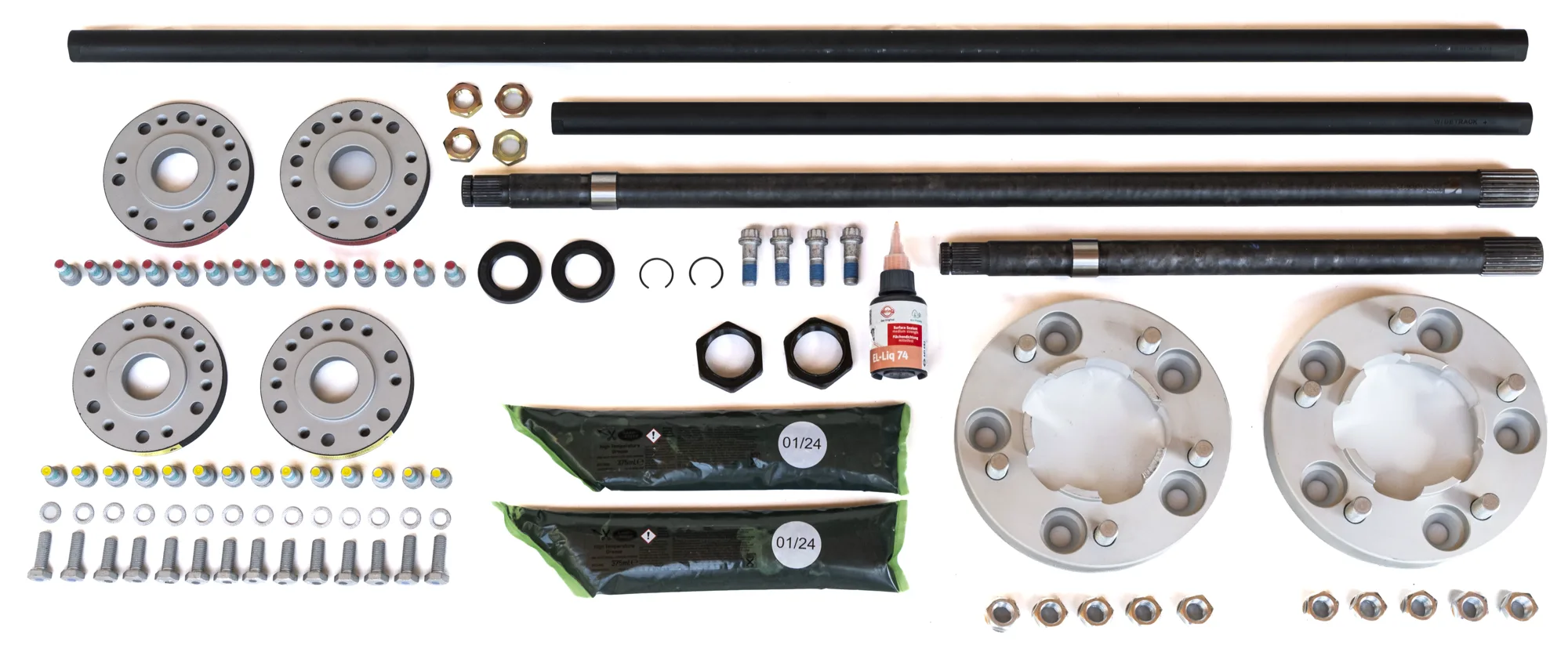

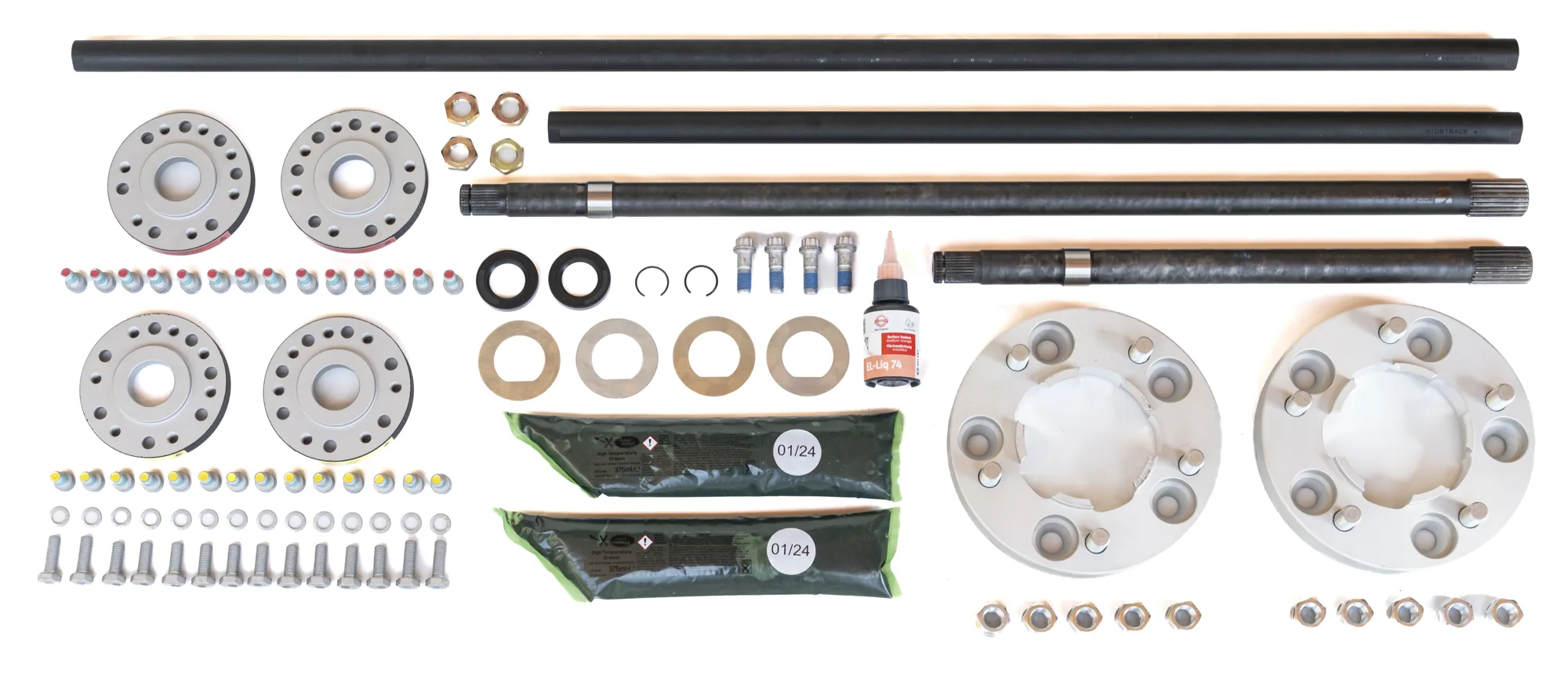

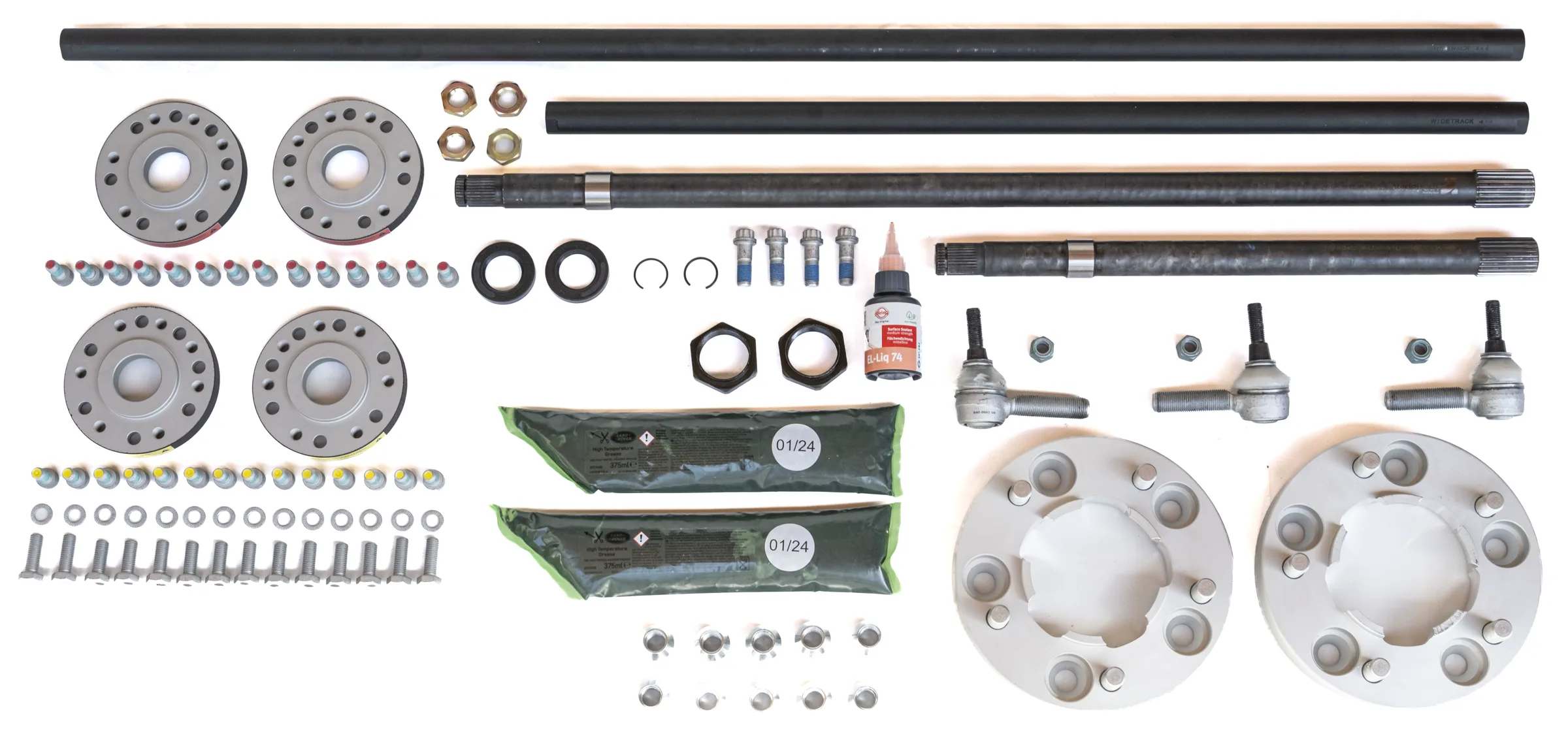

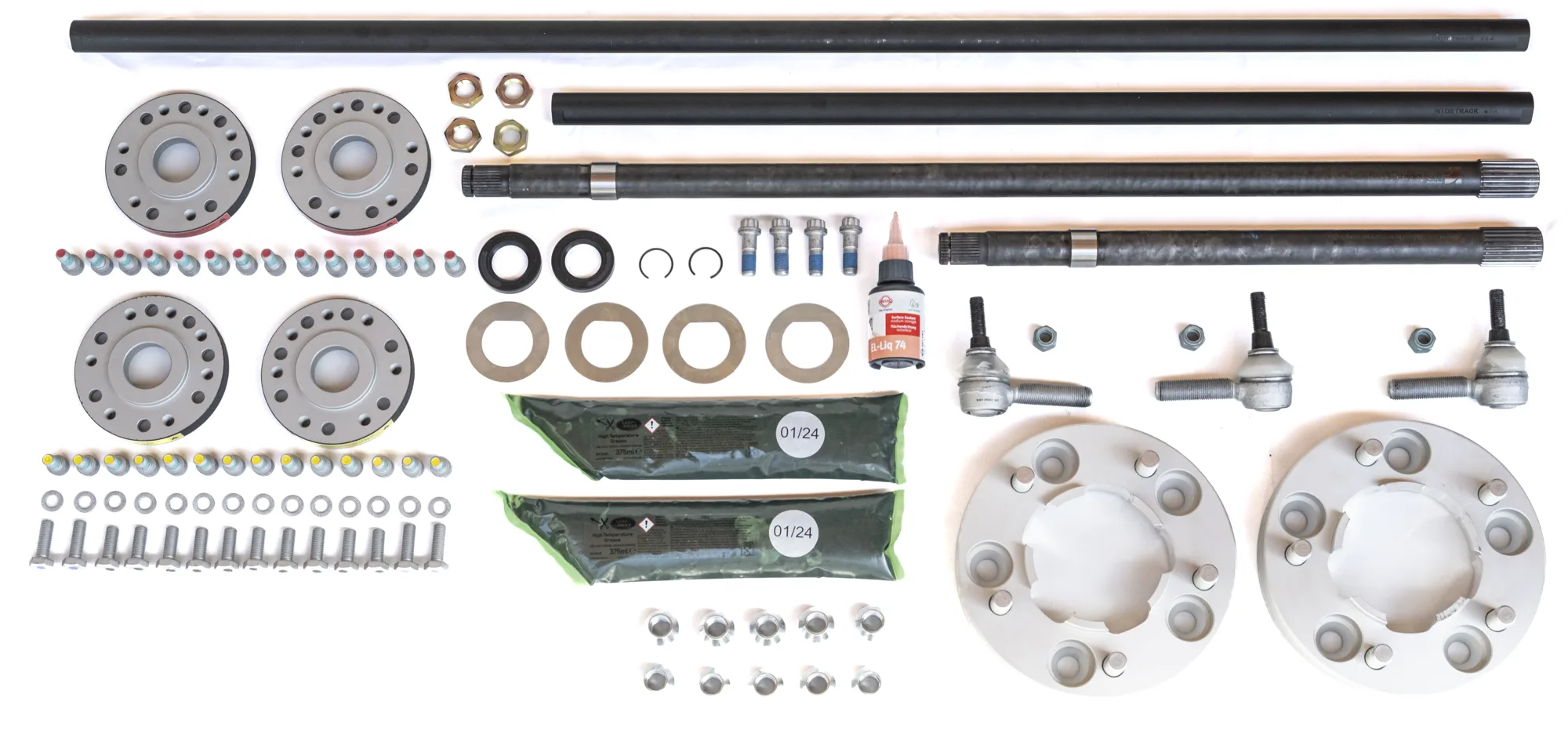

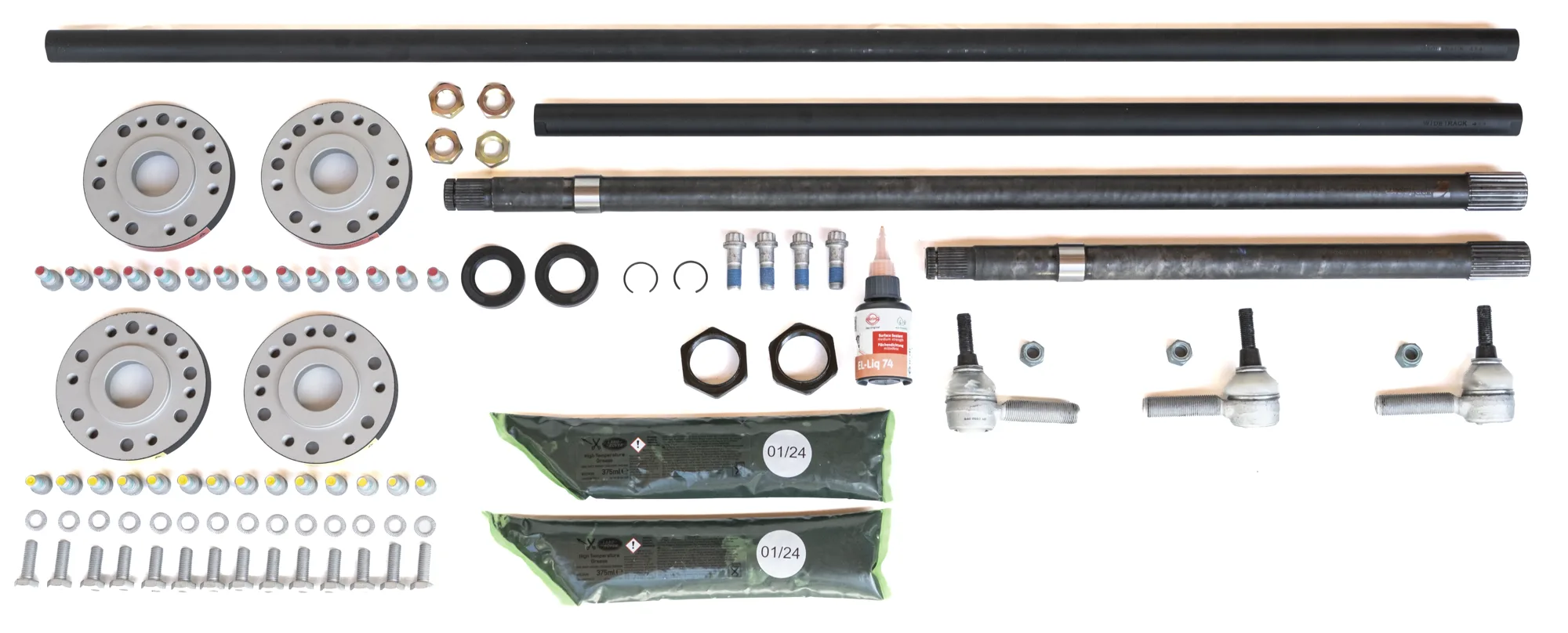

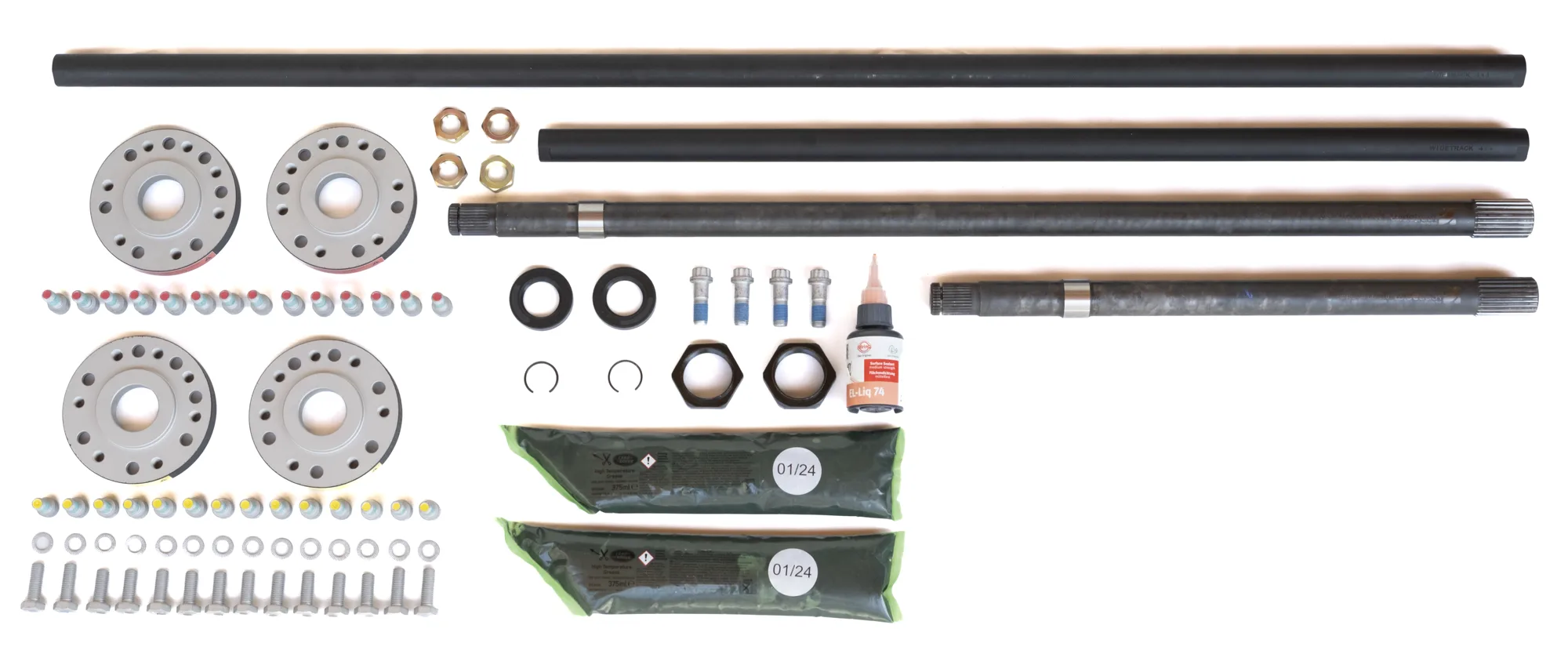

Scope of delivery, axle widening kit
One kit. Everything included.
Every component is engineered, manufactured and individually inspected by us, from the widening ring and the halfshaft right down to the special bolts.

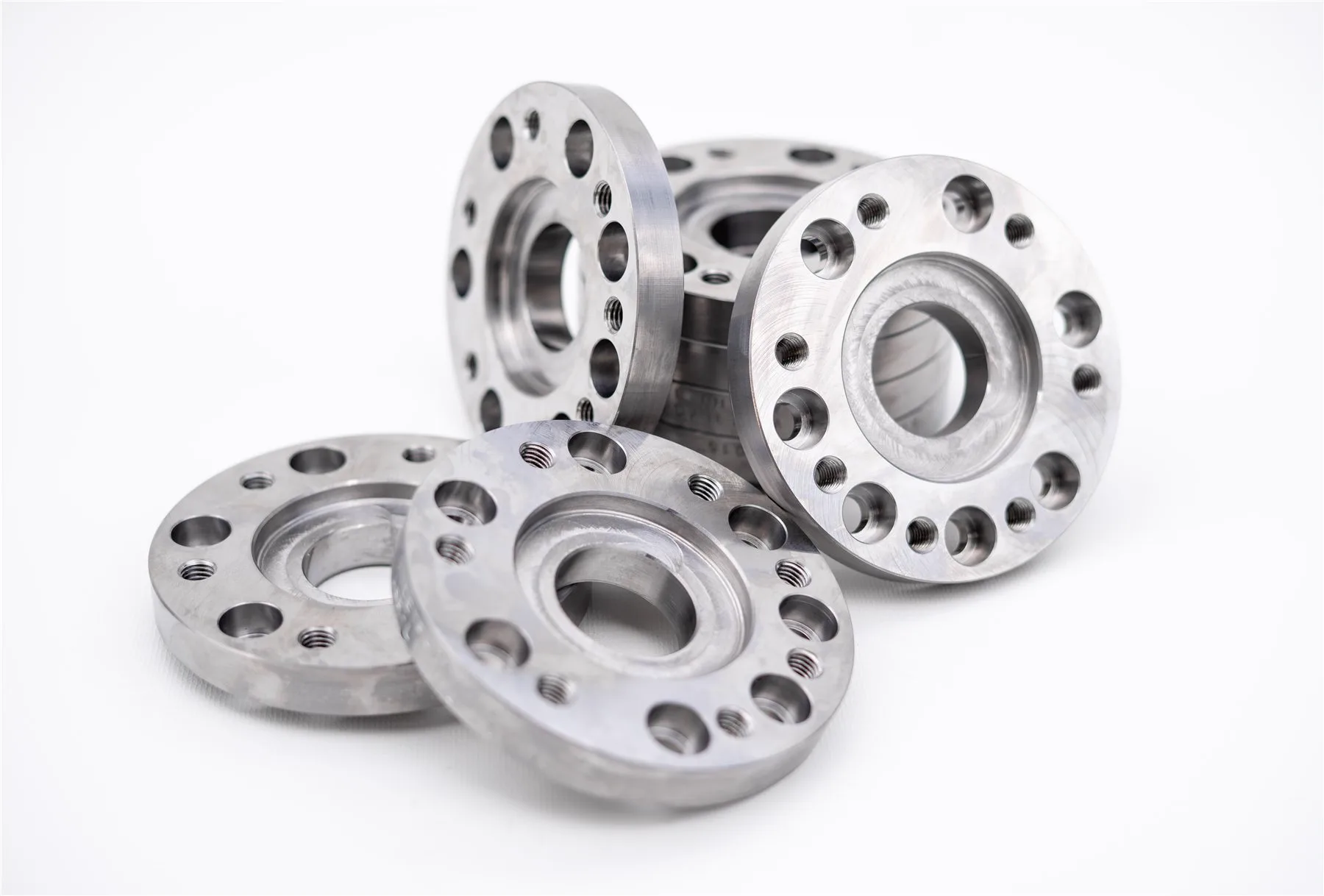

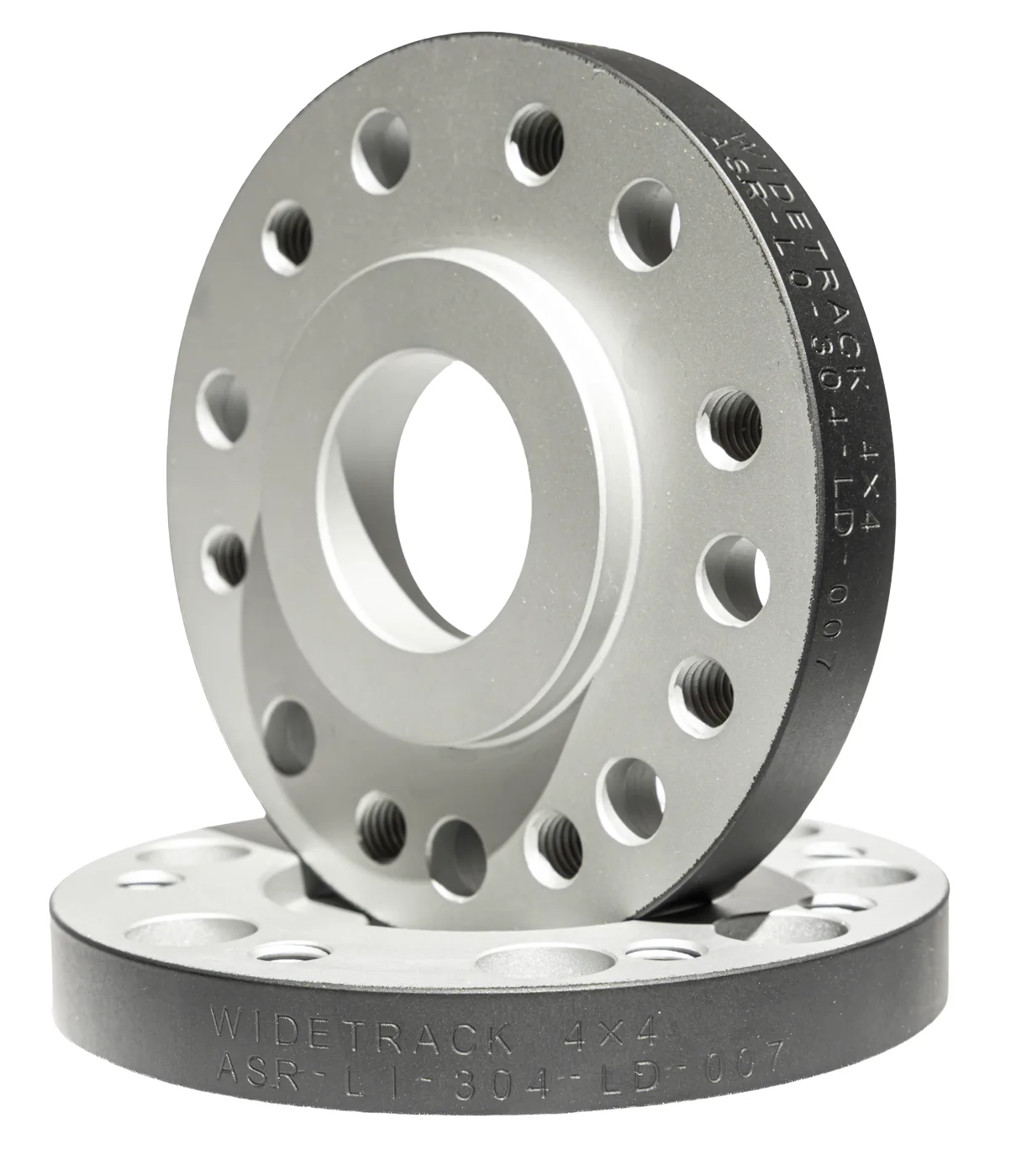

- 4 × axle widening rings — 2 each inner/outer, left/right
- 2 × extended halfshafts — short + long, 34CrNiMo6 steel, with the original 24/32 spline

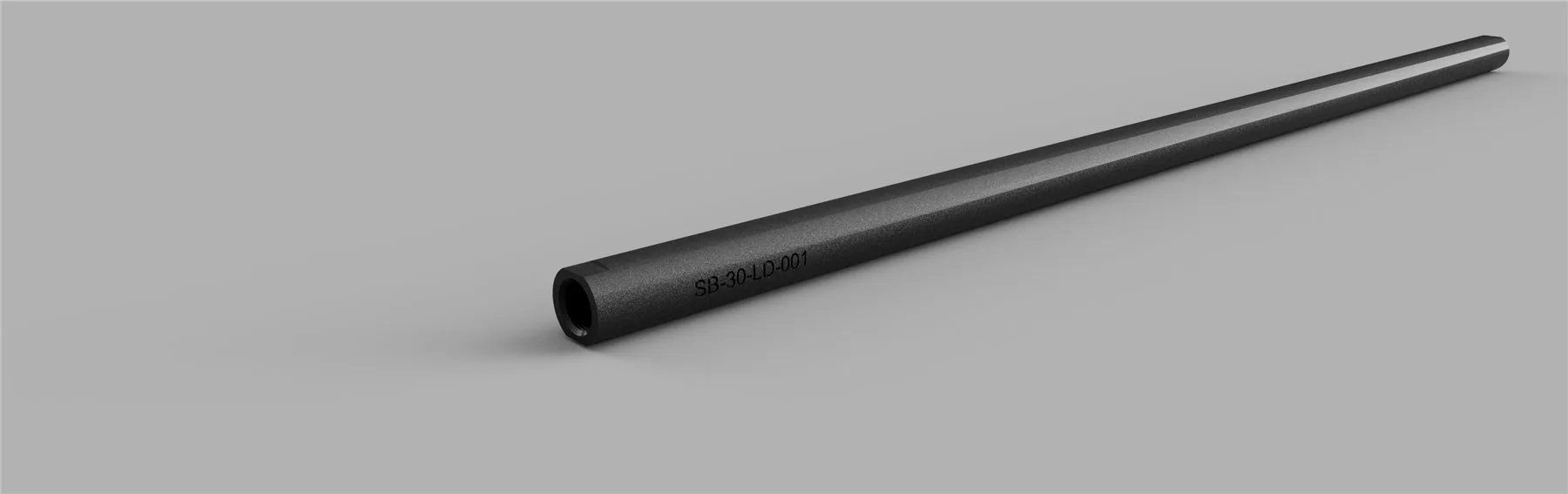

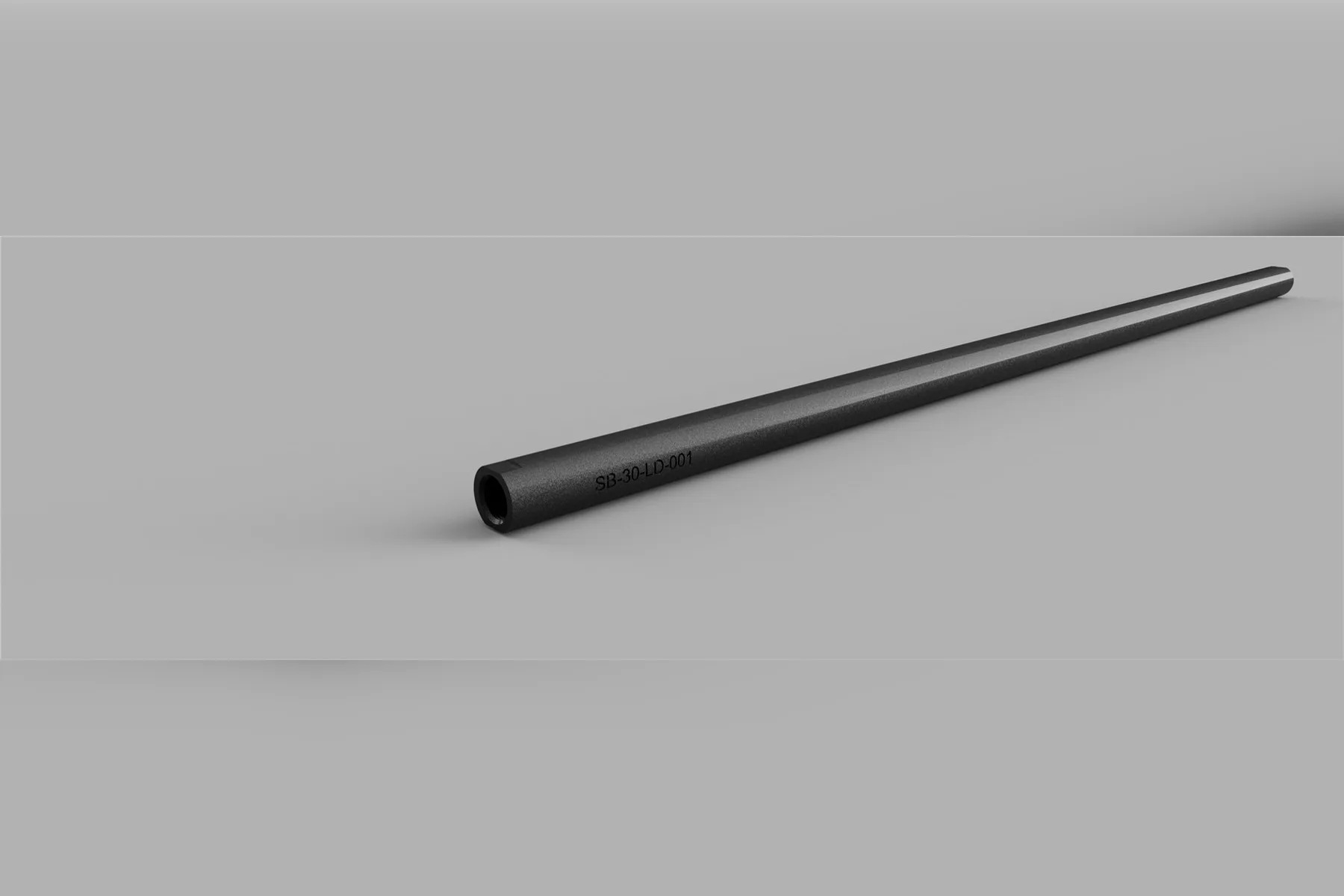

- 1 × extended drag link — incl. 2 lock nuts

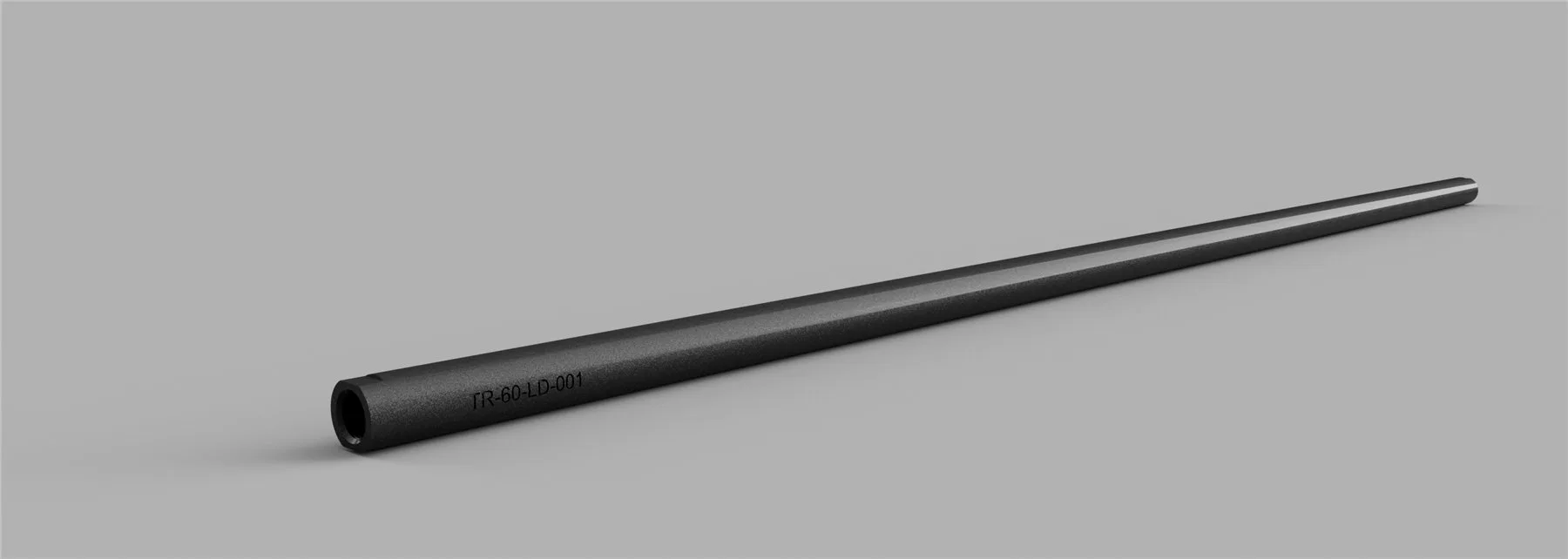

- 1 × extended track rod — incl. 2 lock nuts
- 3 × FAG track rod ends — zinc-plated, 2× right-hand, 1× left-hand thread (optional, +€49)
- 1 × complete fastener kit — 42 bolts, 14 Nord-Lock washers, colour-coded, sorted and packed
- 4 × new brake caliper bolts
- 2 × halfshaft circlips — TDL100240
- 2 × oil seals — FTC5268 (swivel ball to halfshaft)
- 1 × gasket sealant EL-Liq74
- 1 × detailed fitting instructions + safety sheet (A5)
- 1 × expert report for individual vehicle approval — with the VIN of your vehicle

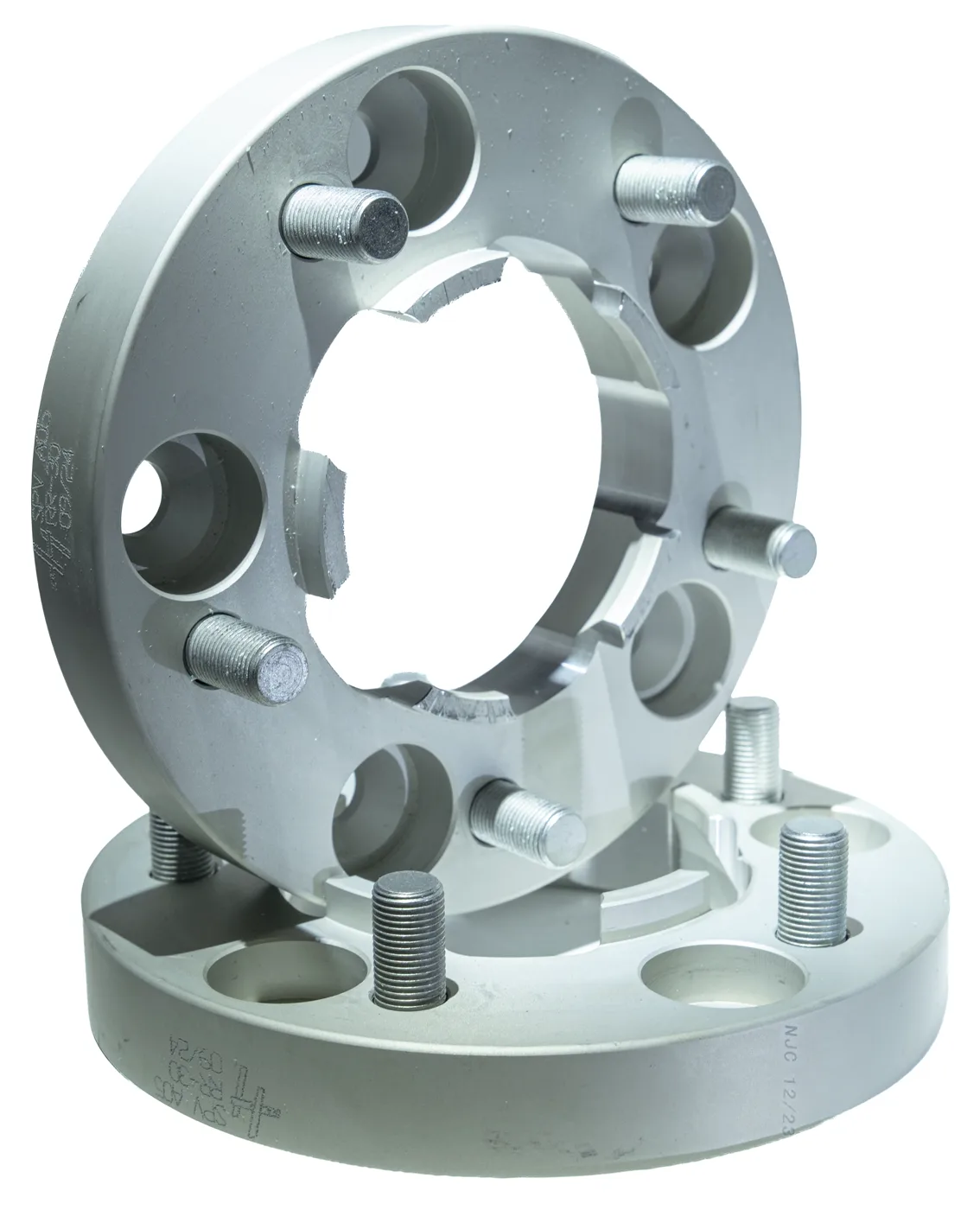

Optionally available: 30 mm wheel spacers by Hofmann with a parts certificate for the rear axle.
| Widening | +60 mm track in total — 30 mm per side (2 rings of 15 mm per side) |
|---|---|
| Ring material | High-strength quenched and tempered steel 42CrMoS4 |
| Halfshaft material | 34CrNiMo6 |
| Drag link and track rod material | S355J2H (tube 26.9 × 6.3 mm) |
| Corrosion protection | Zinc flake coating KL 120, radial face with black top coat |
| Bolts | Grade 12.9 with thread locker or Nord-Lock wedge-lock washers |
| Caster correction | 2° / 4° selectable |
| Axle load | Full axle load — no restriction |
| Vehicles | Land Rover Defender 90 / 110 / 130 |
How it works
From click to registration.
- Configure & order: choose the caster correction and optional parts. The kit fits the Defender 90, 110 and 130 identically.
- Enter your VIN: the configurator asks for your vehicle identification number, which we document in the expert report.
- Have it fitted: installation by a specialist workshop. Detailed fitting instructions and a safety sheet are included.
- Register it: take the enclosed expert report to your inspection body for individual approval under § 21 StVZO, and you are done.
